City Fest

Client: Luis Palau Association
Event: CityFest West Michigan
Location: Ah-Nab-Awen Park – Grand Rapids, MI

This event was located right in the heart of downtown Grand Rapids, MI at the Ah-Nab-Awen Park and featured a Main Stage, Childrens Stage, BMX/FMX area and overflow seating areas.  The park itself was a challenge as it sits on the river with a flood berm and seating area that slopes towards the river.  Another challenge was controlling the audio coverage to maintain no louder than 80dB (A weighted) to the perimeter of the park.  Nexo’s NS1 software was utilized to ensure proper coverage to all attendees while maintaining the perimeter limits.

previous arrow
next arrow
Slider

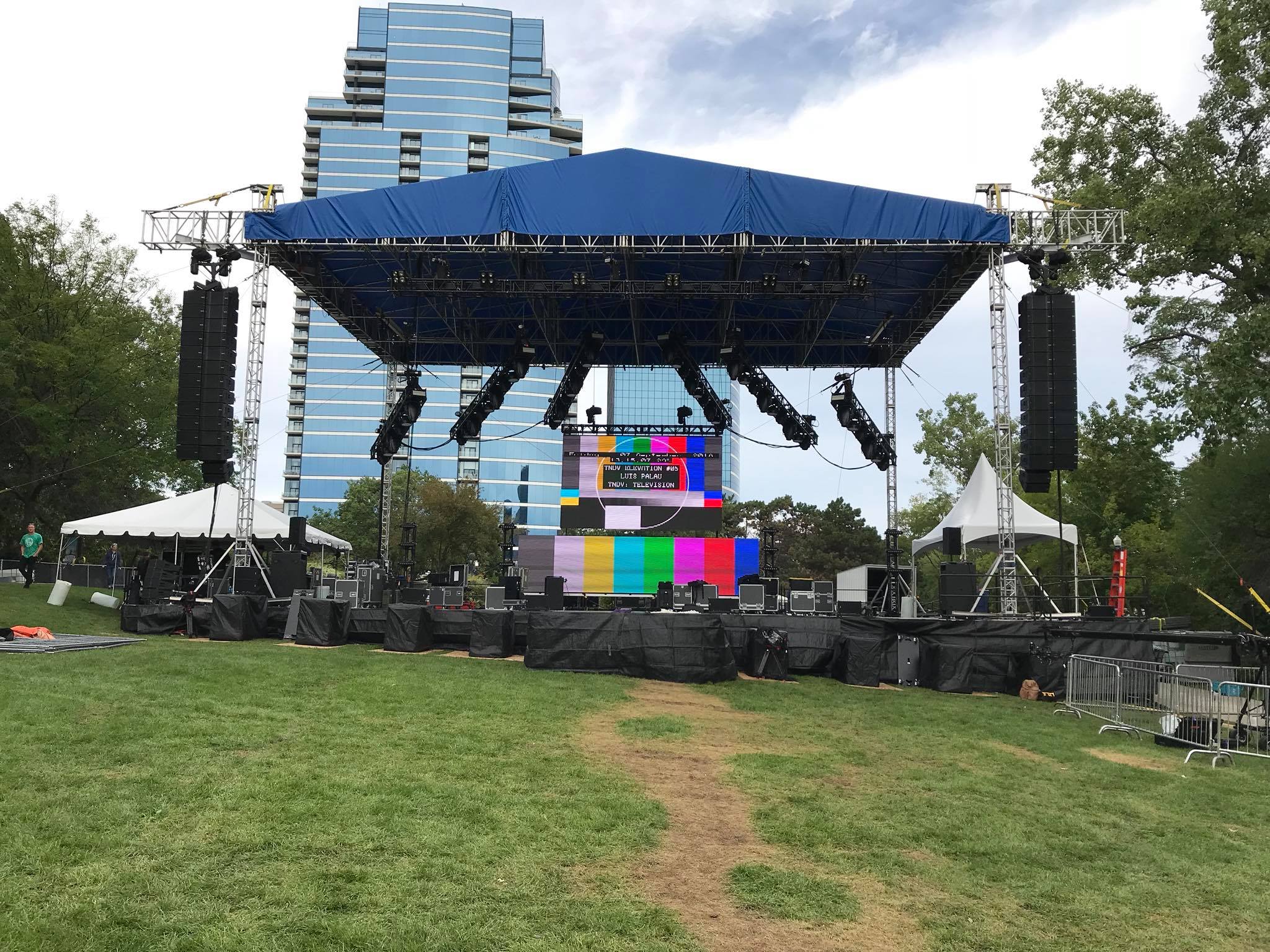

Main Stage Audio System Details:
12 per side NEXO STM M46/B112
16 NEXO RS18 Subs (cardiod configuration)
8 NEXO M10 Front Fills
4 NEXO STM M28 Side Stage Fill
9 NEXO STM M28 & 2 STM B112 Delay Zone 1
9 NEXO STM M28 & 2 STM B112 Delay Zone 2
Yamaha PM10 console (FOH)
Avid Profile console (MON)
Shure Axient Digital (8ch) Wireless Mic System
Shure PSM1000 (8ch) Wireless IEM System
ClearCom Freespeak wireless com
ClearCom HelixNet wired com

Main Stage Lighting System Details:
16 Martin Viper Profiles
16 Chauvet 230SR Beam
16 Martin Quantum Wash
12 Martin Aura XB
12 Ayrton Magic Blade FX
6 4-light blinders
4 Lycian Follow Spots
1 GrandMA2 Full Size lighting support console

Main Stage Video System Details:
11.5 x 20 ft LED Wall (iMag)
6.5 x 28 ft LED Wall (ground support stage scenic)
9 x 16 ft LED Wall (delay iMag)

Childrens Stage & Overflow Area 1:
4 per side NEXO M10
2 per side NEXO MSUB
11.5 x 18 ft LED Wall

BMX/FMX Stage & Overflow Area 2:
4 per side NEXO M10
2 per side NEXO MSUB
11.5 x 18 ft LED Wall

Bridge Overflow Area:
4 EV ETX12P
