ECC

Emmanuel Christian Center called on REACH Communications to assist with their St Louis Park, MN updates that included the main sanctuary audio and video updates as well as distributed systems and the kids large group rooms.   Below are some details:

previous arrow
next arrow
Slider

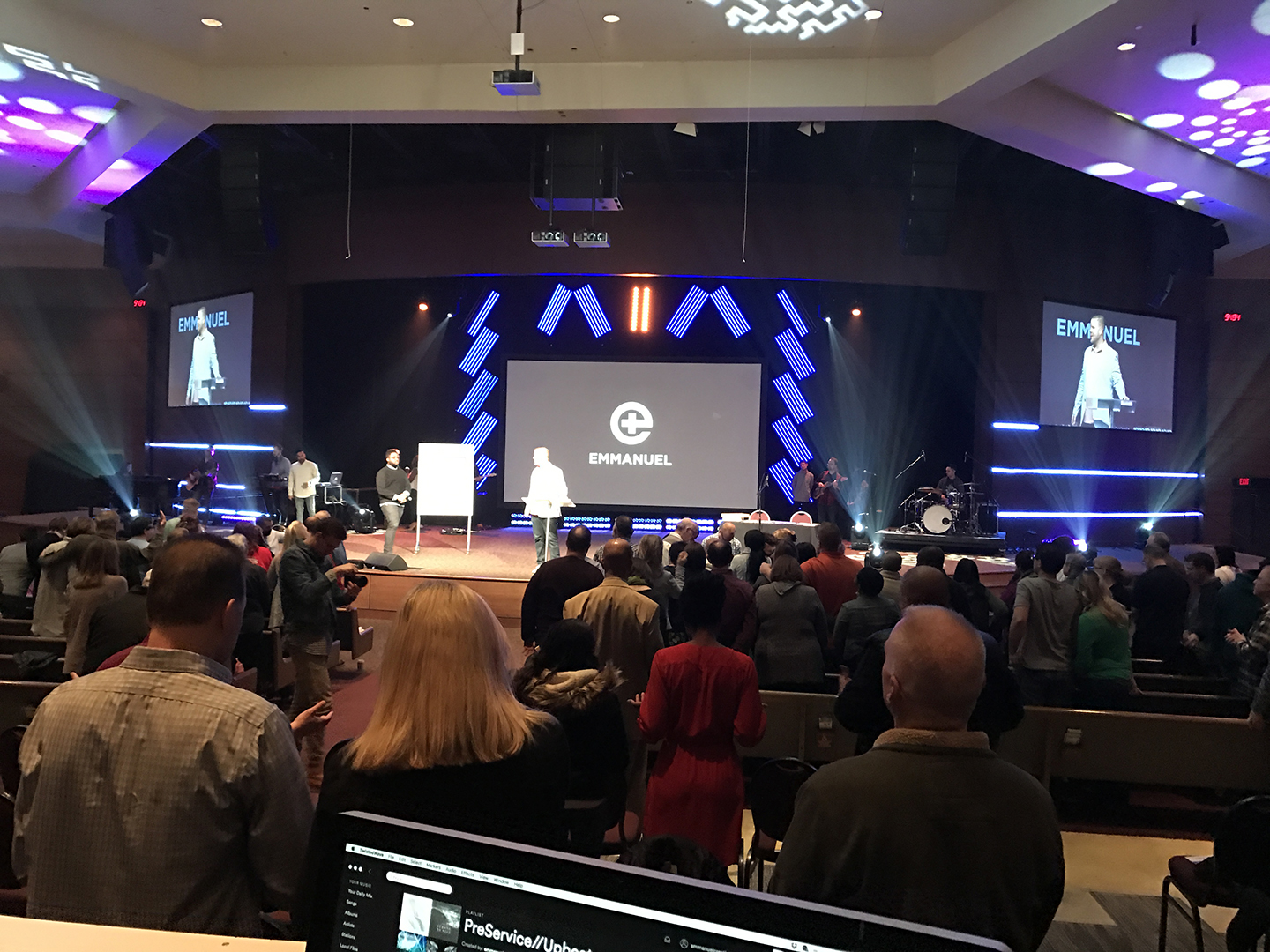

Main Sanctuary Full Audio/Video Update

– Removed old PA
– Installed 4 – 5 box hangs – NEXO S1210/1230, 3 x 2 box hang NEXO RS18, 8 x NEXO ID24 as front fills
– Powered by 7 – NEXO 4X4, and 1 – 4X1

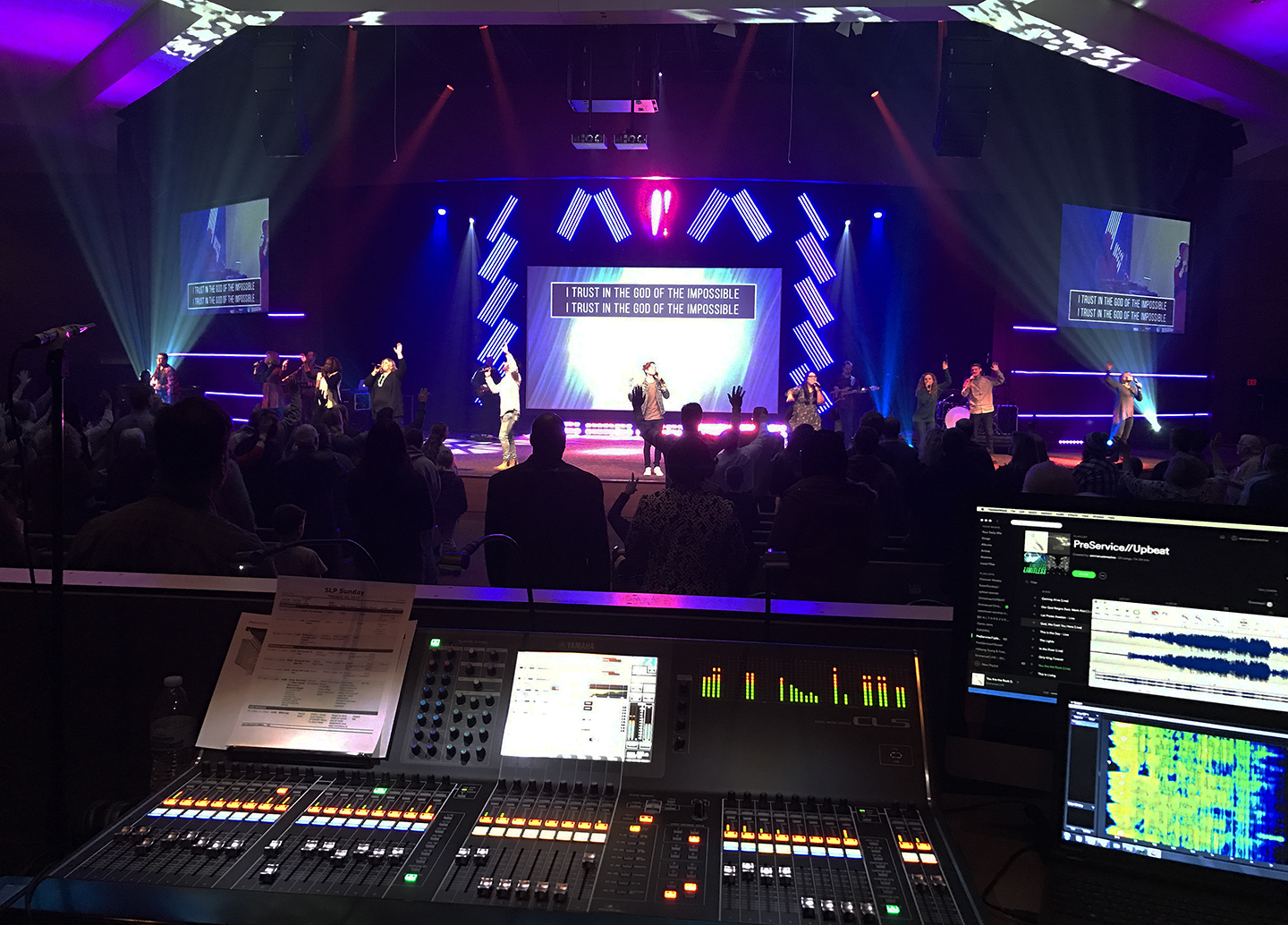

– Upgraded old A&H console to Yamaha CL5 with full Dante primary and secondary network

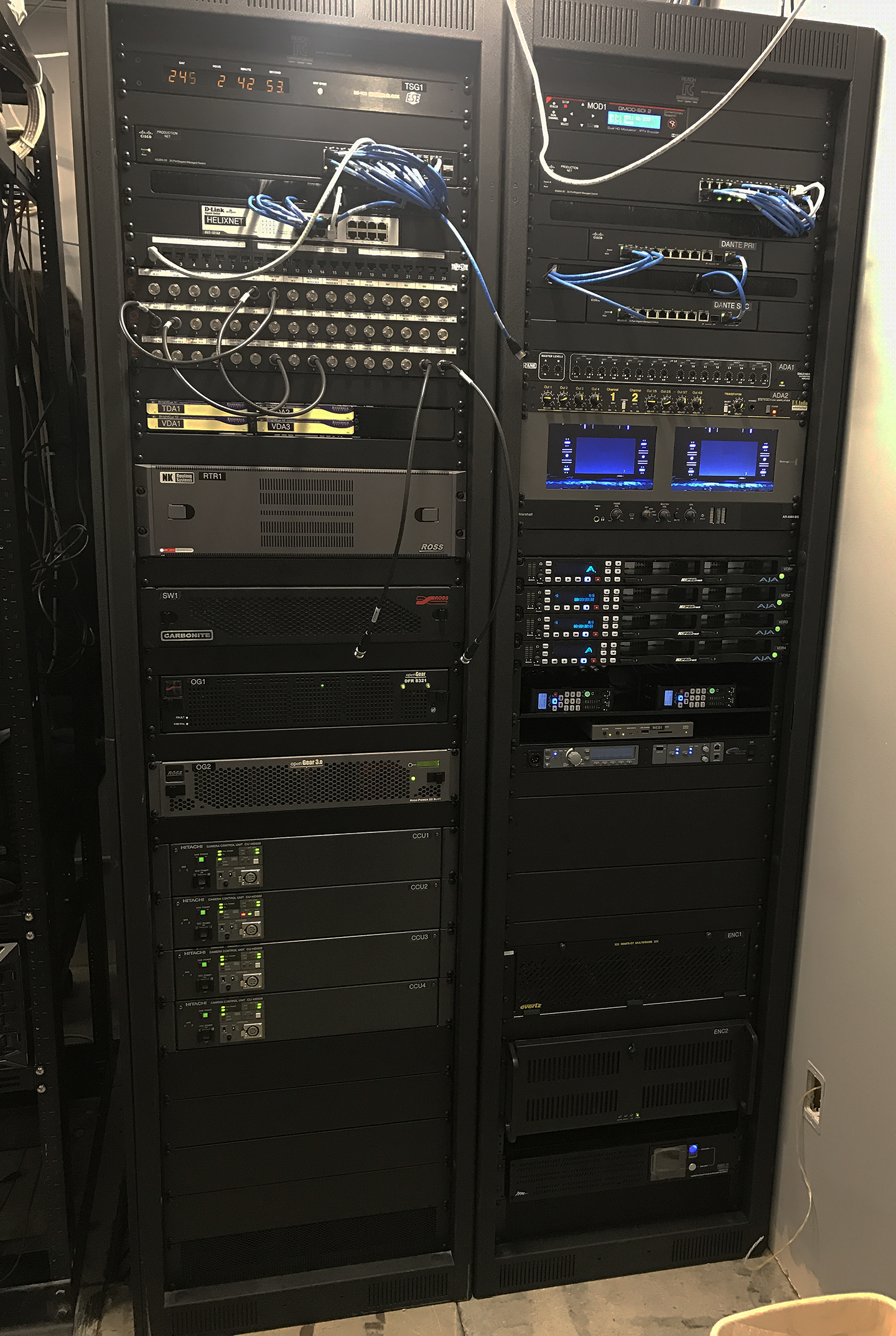

– Upgraded to Ross 72 x 72 router, and added button panels at controls desks.

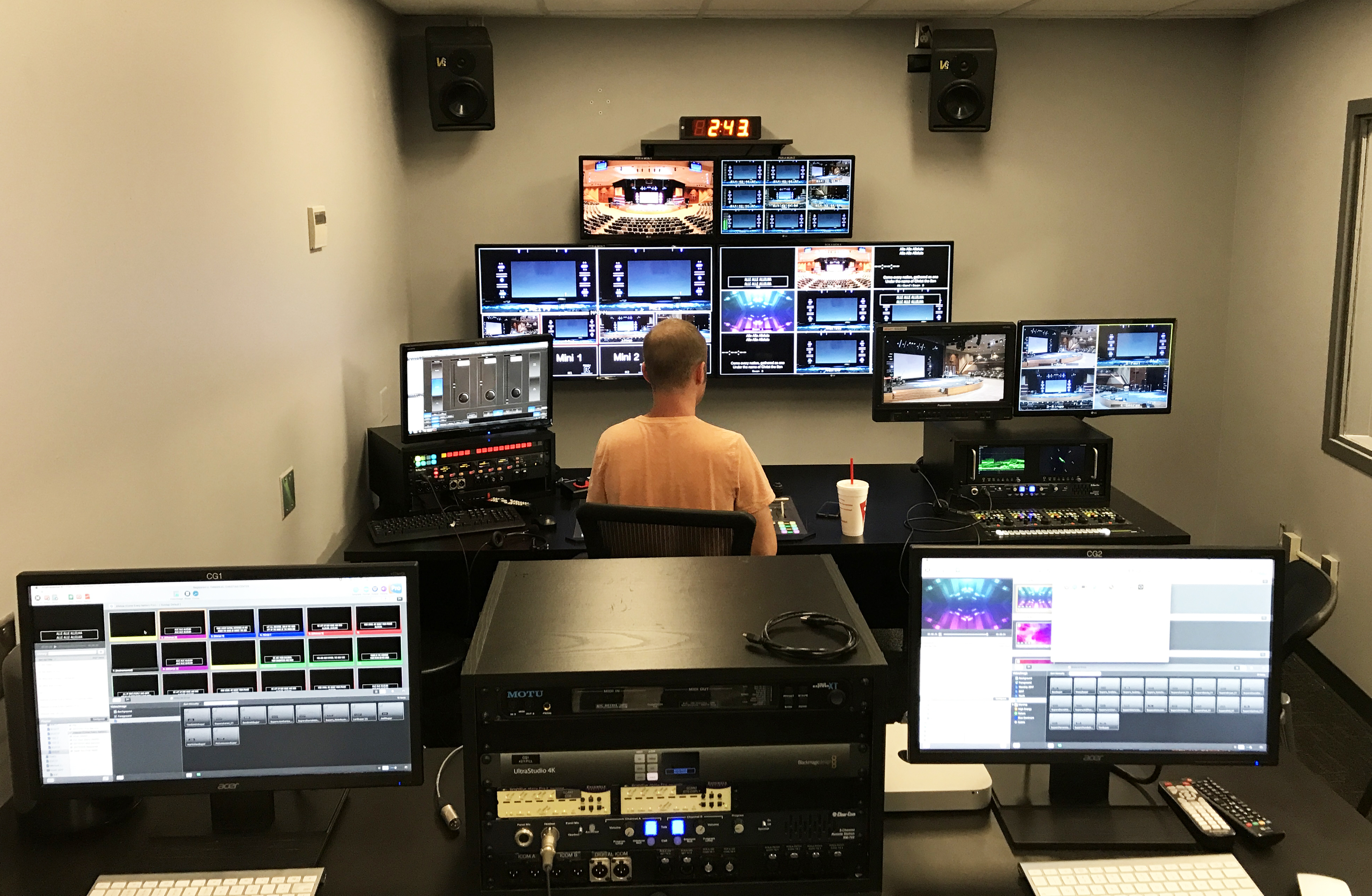

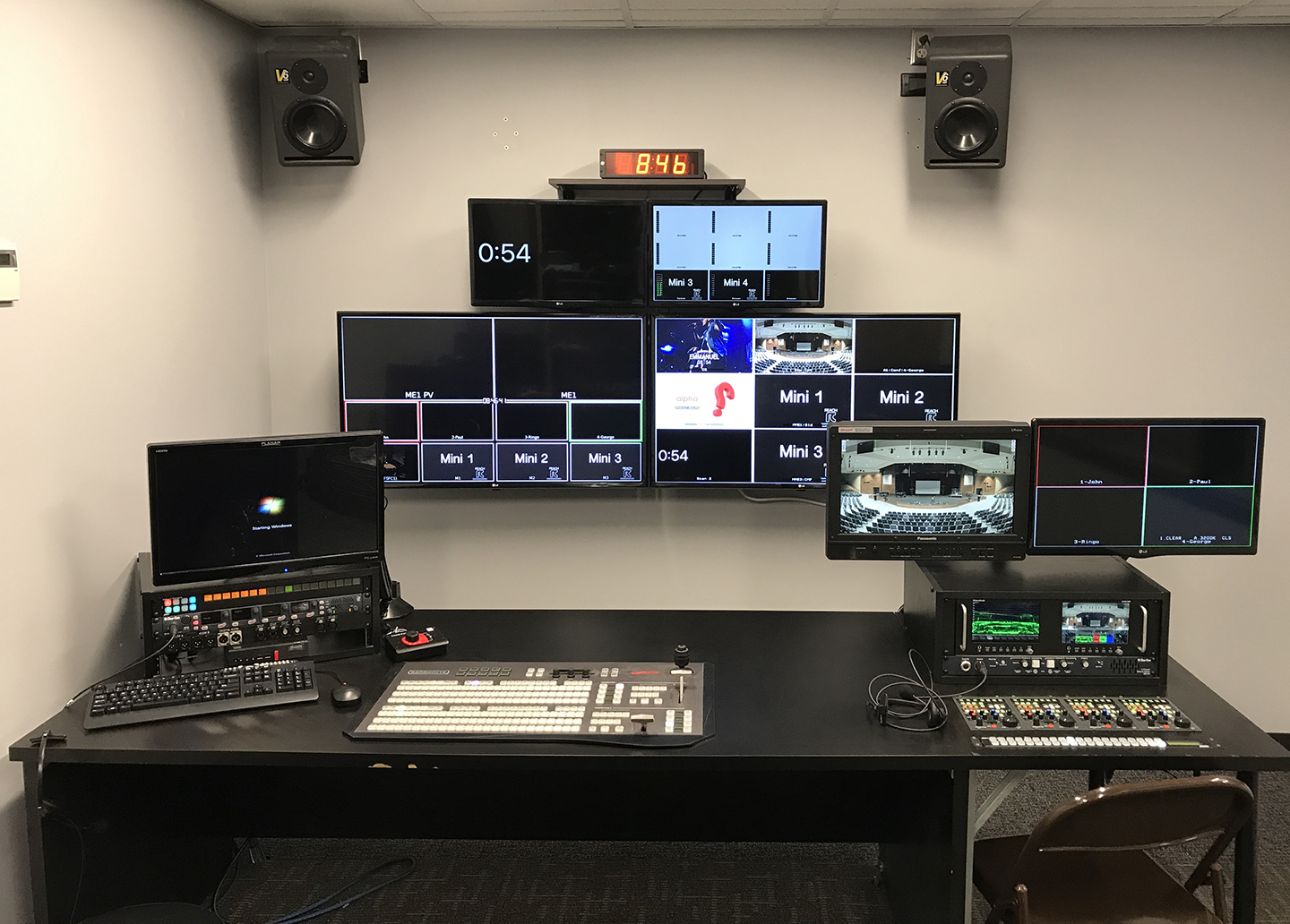

– Added Yamaha QL5 in control room for mixing video stream and integrated into Dante network
– Upgraded all 4 cameras to Hitachi HD55000’s and installed SMPTE fiber for signaling

Distributed
– Installed all new lobby tv’s and SDI signal cabling
– Installed all new QSC 70v speaker lobby’s, hallways and outside
– Installed all new TV’s in kids’ classrooms with all new modulated video cabling

Kids Large Group Rooms:
– Complete AVL Overhaul
– Screen, Projector and TV’s, Kramer switcher
– QSC PA with QSC CXD amplifier for processing
– Jands Vista lighting console with Chauvet fixtures
– Staging Concepts stage decking
